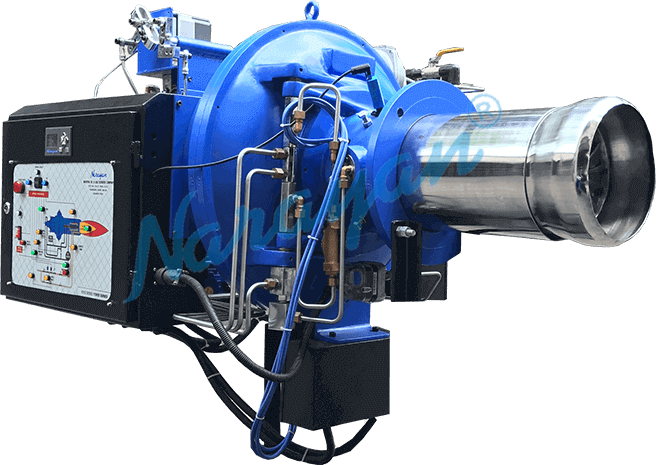

NTD 1400Y3 Fully Stepless Modulating Dual Fuel ( Light Oil + Natural Gas ) Burner Reference Video Installed on Rotary Dryer.
NTD Series Dual Fuel ( Gas + Oil ) Fully Modulating Burner Video Link Reference : https://youtu.be/IeabbdROCAA
|
BURNER MODEL |
HEAT OUTPUT (Kcal / Hr) |
HEAT OUTPUT (kW/Hr) |
LIGHT OIL CONSUMPTION (Kg/Hr) |
NATURAL GAS CONSUMPTION (SCM/Hr) |
F D MOTOR (kW) |
VOLTAGE (Ph) |
OIL PUMP MOTOR (kW) |
FLAME LEGTH (Mtr) |
FLAME DIA (Mtr) |
BACK PRESSURE | ||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Graph | ||||
| NTD 700 | 120,400 | 584,800 | 140 | 680 | 12.29 | 61.56 | 13.50 | 67.50 | 1.10 | 3 | 1.1 | 0.73 | 1.37 | 0.25 | 0.45 | |
| NTD 1400 | 232,200 | 1,178,200 | 270 | 1370 | 24.44 | 124.02 | 27.50 | 135.00 | 2.20 | 3 | 1.1 | 1.00 | 1.87 | 0.31 | 0.57 | |
| NTD 2700 | 481,600 | 2,365,000 | 560 | 2750 | 50.69 | 248.95 | 55.00 | 275.00 | 3.70 | 3 | 1.5 | 1.20 | 2.75 | 0.43 | 0.70 | |
| NTD 5500 | 1,032,000 | 4,730,000 | 1200 | 5500 | 108.63 | 497.89 | 110.00 | 550.00 | 11.25 | 3 | 2.2 | 1.70 | 4.00 | 0.54 | 0.85 | |
| NTD 7500 | 1,376,000 | 6,536,000 | 1600 | 7600 | 144.84 | 688.00 | 145.00 | 780.00 | 18.95 | 3 | 3.0 | 1.95 | 5.00 | 0.60 | 0.95 | |
